Waste Oil Distillation Machine

Waste-Oil-Distillation-MachineWaste Oil Distillation Plant can treat a variety of waste lube oil and get high quality base oil and a small amount of gasoline and diesel through vacuum distillation. After pretreatment, waste oil pumped into the distillation kettle, heating to working temperature, and then we can get the base oil, gasoline and diesel we required.

When reaction complete, stop heating and remove residue from the bottom of the tank, then the machine can be used again. The production cost is low, but the base oil is high quality. This is the most advanced technology in the world in the waste oil recycling line and suitable for large-scale industrial production.

Operation Process


Distillation System

  1. Put some  crude oil or engine oil into reactor by oil pump.
  2. Heating reactor over 150°C
  3. High temperature oil gas will be cooling down to pure crude oil by condensers

Purification System

  1. After distillation system, oil should go through purification tank Ⅰand purification tank Ⅱwhere some catalyst for removing color
  2. Then oil go into removing smell tank and add some decolorant for removing irritating smell.
  3. Finally, you can get purity about 90% diesel oil.

Waste Oil Distillation Plant System DrawingWaste-Oil-Distillation-Machine-Processing-Effect

Advantages Feature of Romiter Waste Oil Distillation Equipment


1). Security Operation:

  • Adopting automatic submerged welding technology.
  • all of the weldings will be detected by the ultrasonic nondestructive testing method to ensure the welding quality and the welding shape.
  • adopting manufacture process controlling system on the quality, every manufacture process, manufacture date, operators, etc.
  • equipped with antiexplosion device, safety valves, emergency valves, pressure and temperature meters, vacuum pump, as well as the alarming system.

2). Environmental Friendly:

  • Emission Standard: Adopting special gas scrubbers to remove acid gas and dust from smoke
  • Smell during operation: Fully enclosed during the operation
  • Water pollution: No pollution at all.
  • Solid pollution: the solid after pyrolysis is the crude carbon black and steel wires which can be deep-processed or sold directly with its value.

3).  Energy conservation and low cost on operation:

special covers of the reactors and chambers can keep hot during the heating in good efficiency as well as the direct heating system to save energy and cost.

  • Low cost: only cost about 30 USD on catalyst when treat 1 ton used oil. The catelyst is basic chemical material that can be bought in every country without any restrictions.
  • Easy operaion: 1-2 people can operate the machine easily.
  • Environmental protection: the whole process is all sealed, it won’t release any harmful gas to enviroment, the colloid and asphalting and carbon black in the waste lube oil are all into sludge that can usedas asphalt ot fuel.
  • Widely usage: this kind of machine can treat gasoline engine oil, diesel oil, rubber oil and other waste lube oil of the engine.
  • Get high quality base oil: no unsaturated compostion, it can be storaged a long time, the color and smell will not become bad.

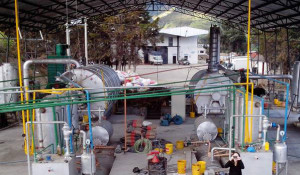

Waste Oil Refining Machine

Parameter Table of Waste Oil Distillatino Machine




No. Items Specifications
1 Equipment type RMD-10 tons
2 Raw material Tyre oil, plastic oil, engine oil, crude oil
3 Structure form Horizontal
4 Capacity 10 tons/set
5 Working time 2-3days
6 Material of reactor Q245R boiler plate
7 Thickness of reactor 16mm
8 Total power 1-2kw/h
9 Size of reactor Dimeter2200mm×L4800mm
10 Fuel Coal or wood
11 Workers 2-3 workers
12 Diesel Get about 90% diesel oil over 150°C
13 Water vapor 1%
14 Oil  slag 9%



Pyrolysis oil distillation plant- Our special service:

  1. Professional and detailed product introduction for you, such as photos, price, technical date, payment, delivery time, shipment and so on.
  2. We have running machine in our factory, welcome to visit our factory. we hope our customer know more details about our machine and factory.
  3. After bought our machine, we could supply 1 year warrantly. During the time any question our engineers will help you solve the problem at the first time.
  4. Our engineers will install for you and provide the detailed training until the machine operate successfully.

Why choose us:

Romiter Group are committed to manufacture pressure vessel, pyrolysis and distillation machine for 5 years. Our factory has complete experience and technology to complete your order. Our oil distillation plant is environmental friendly and energy saving, which make sure customer can use it anywhere.
